1P & 2P Bifacial — Fixed / Seasonal-Tilt MMS
1/4

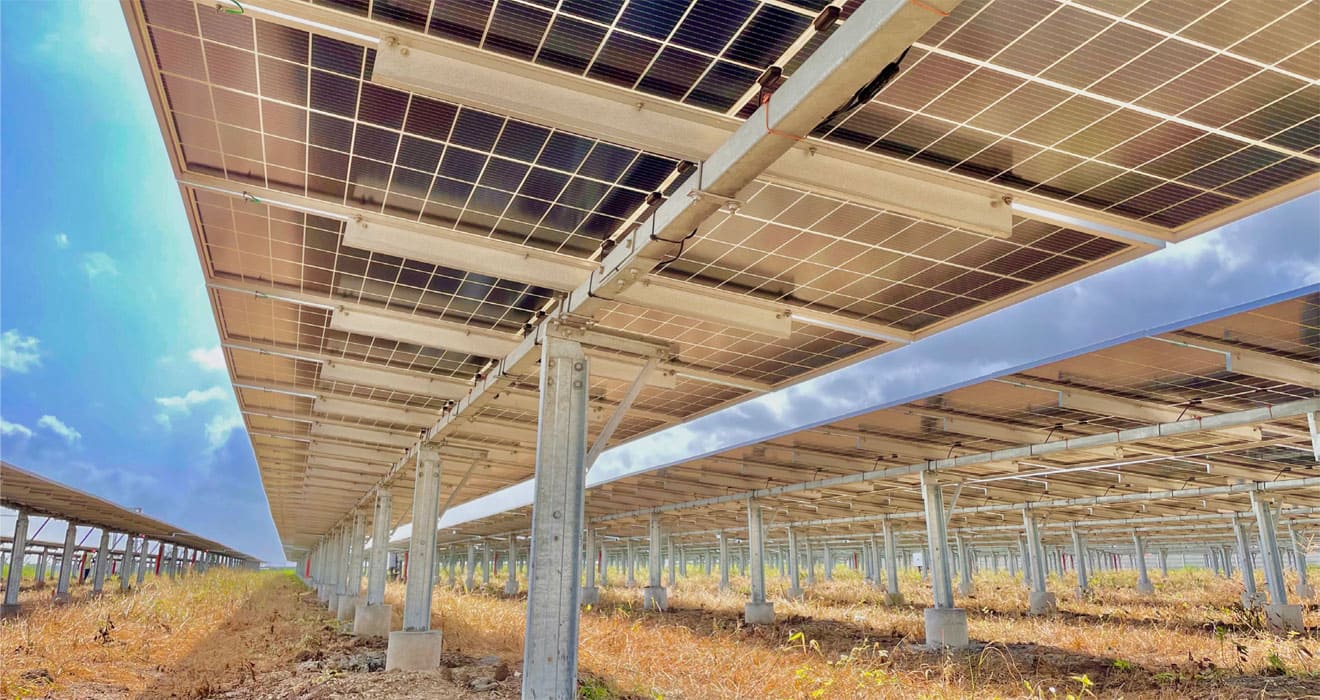

Seasonal Chase 1P and 2P
Seasonal Chase is a fixed, manually adjustable seasonal-tilt module mounting structure (MMS), available in single-module portrait (1P) and two-module portrait (2P) configurations. Its seasonal-tilt design allows the module angle to be adjusted 2–3 times a year to follow the sun’s changing path, increasing energy generation by 4–6% compared with a fixed-tilt structure — without motors, additional weight, or complex maintenance. The 2P configuration reduces the number of rows, posts, and foundations required per megawatt, making it well suited for large utility-scale projects, while the 1P configuration offers greater flexibility across different project layouts and site conditions. Built with high-strength profiles and self-locking 8.8-grade fasteners, Seasonal Chase is engineered for durability, quick installation, and reliable long-term performance across diverse terrains and climates.
Seasonal Tilt
- 1P & 2P Configurations
- 4–6% Higher Generation
- Quick Installation
- Low Maintenance
Type of structure: Fixed Tilt & Manual / Seasonal Tilt- Module orientation — 1P: Portrait (single module)
- Module orientation — 2P: Portrait, bifacial-ready (two modules)
Corrosion resistance: Up to C5
Structural material: Magsure / Magnelis / AZM150 / HDGI / Galvalume / POSMAC- Tilt angles: 5° / 15° / 20° / 25°
Approx. weight (330 W modules, 2P configuration): 26–28 Tons/MW- Fasteners: Self-locking 8.8-grade with zinc-flake coating
Highlights: Cost-effective, with reduced labour expenses
- Type of structure: Fix / Seasonal-Tilt & Seasonal Structures
PV module types: Compatible with all PV modules — Poly, Mono PERC & Bi-facial- Tilt angles: 5° / 15° / 20° / 25°
Table length: Flexible modular design based on string size
Max. wind speed: 39 m/s (140 km/h) / 50 m/s (180 km/h)- Corrosion specification: C2 / C3 / C4 / C5 — as per ISO 12944
Seasonal drive: Manual actuator- Software used: Ansys Mechanical (FEA) & Staad Pro
- Regulations: IS800 / IS801, IS875-III or ASCE7-10
- Structure material: Magsure / Magnelis / AZM150 / HDGI / Galvalume / POSMAC
- Inverter stands with canopy for protection
- Galvanized earthing strips for electrical grounding
- Wire-fence top brackets — Y-shaped & cranked angle
- Barbed wire & wire mesh
Boundary angle assembly (L)
Zinc-flake coated fasteners
- Optimised solar yield — adjust tilt 2–3 times a year for 4–6% more energy vs fixed
- Two modules in portrait (2P), bifacial-ready — fewer rows, posts & foundations per MW
Higher yield, minimal investment — small capex for long-term gains- Self-locking 8.8-grade fasteners with big-sized profiles
- Simple & economical alternative to complex tracking systems
- Low maintenance, quick installation — easy manual tilt adjustment across diverse terrains
